Analyse via Grafana du compte Twitter @CYBERNEURONES

Publié le 03/01/2021 par Frederic

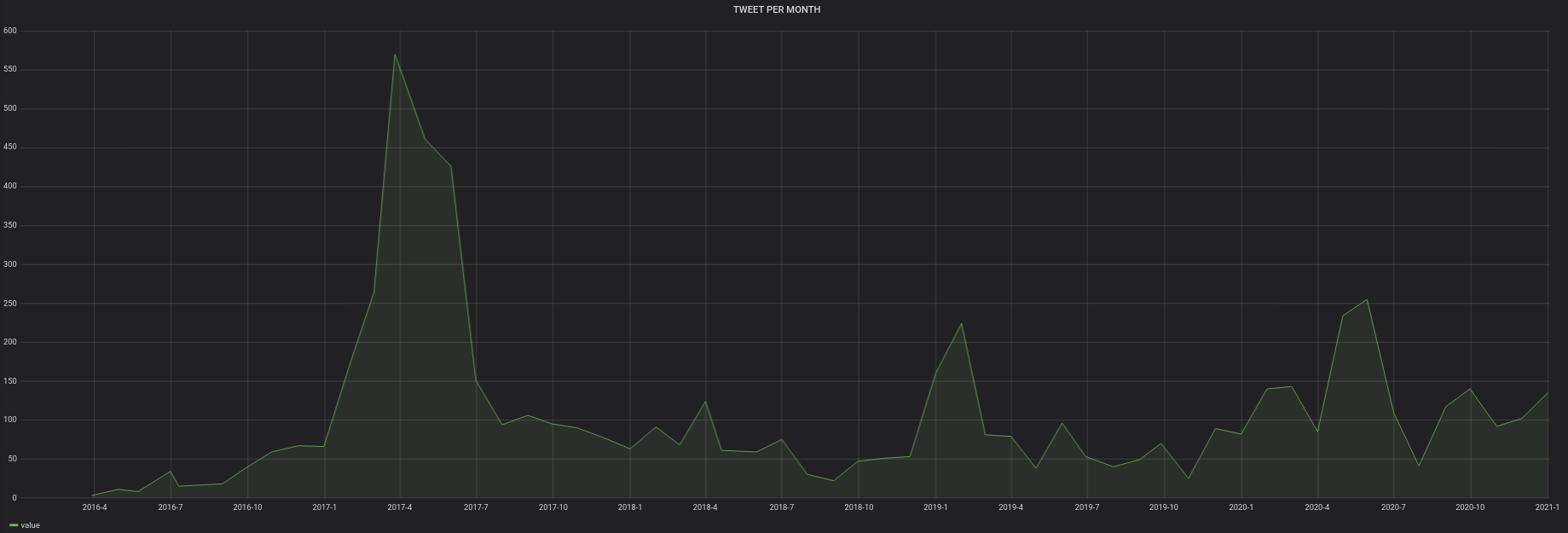

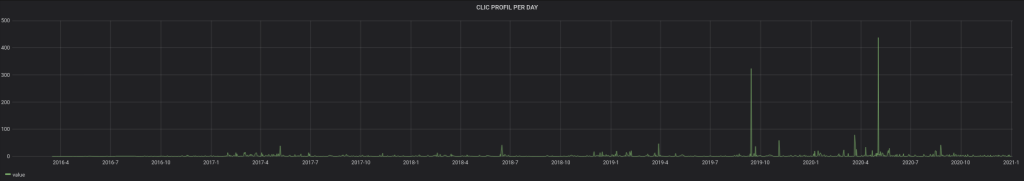

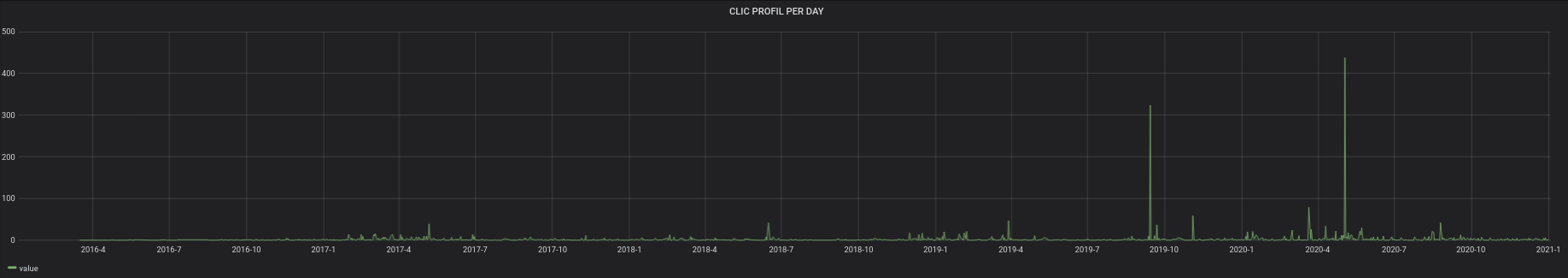

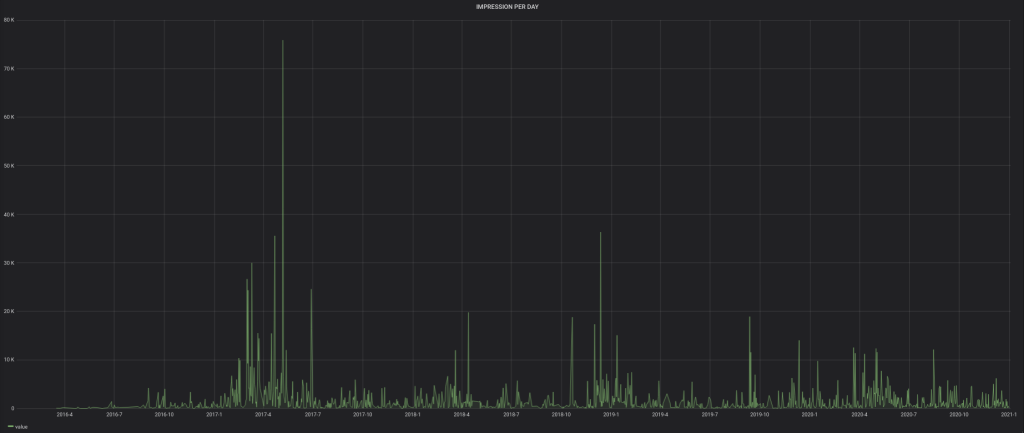

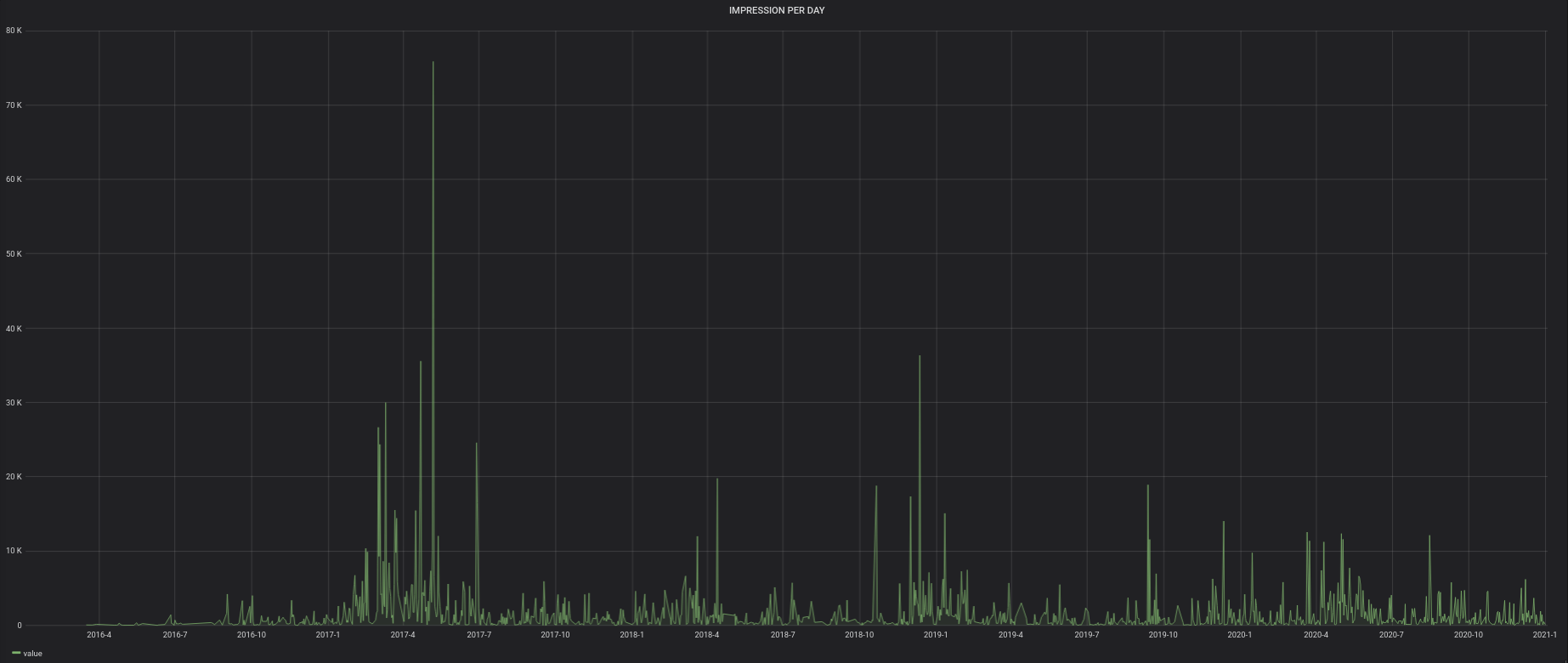

Voici donc les graphiques :

Le programme est en Python.

Microsoft Teams sous Linux : Push des logs vers Grafana

Publié le 25/06/2020 par Frederic

J’ai fait un petit script pour envoyer les logs vers Grafana :

mysql -u root -e "CREATE DATABASE TEAMS;"
mysql -u root -e "USE TEAMS;DROP TABLE TEAMS_AUDIT;"
mysql -u root -e "USE TEAMS; CREATE TABLE TEAMS_AUDIT (DATE datetime, duration float, vdiMode int, eventpdclevel int);"
echo "Version 1.0";
mysql -u root -e "USE TEAMS; DELETE FROM TEAMS_AUDIT";

grep "desktop_foreground_duration" ~/.config/Microsoft/Microsoft\ Teams/logs.txt ~/.config/Microsoft/Microsoft\ Teams/old_logs_* | sed 's/:/ /g' | awk '{print $6 "-" $4 "-" $5 " " $7 ":" $8 ":" $9 " " $20 " " $24 " " $26}' | sed 's/,/ /g' | sed 's/Jun/06/g' | sed 's/May/05/g' > /tmp/audit_teams.txt

while read line
do
DATE=$(echo $line | awk '{print $1 " " $2}');
DURATION=$(echo $line | awk '{print $3}');
VDI=$(echo $line | awk '{print $4}');
LEVEL=$(echo $line | awk '{print $5}');
SQL="USE TEAMS; INSERT INTO TEAMS_AUDIT (DATE, duration, vdiMode, eventpdclevel) VALUES ('$DATE',$DURATION,$VDI,$LEVEL);"
#echo $SQL
mysql -u root -e "$SQL"
done < /tmp/audit_teams.txt

echo "Done"

Ensuite sur Grafana il suffit de faire :

– Pour avoir le temps passé (en seconde) par jour :

SELECT
UNIX_TIMESTAMP(date) as time_sec,
SUM(duration) as value
FROM TEAMS_AUDIT
WHERE
$__timeFilter(DATE)
GROUP BY day(date),month(date),year(date)
ORDER BY DATE

-Pour avoir le temps passé (en jours) par jour :

SELECT
  UNIX_TIMESTAMP(date) as time_sec,
  sum(duration)/60/60 as value
FROM TEAMS_AUDIT
WHERE
  $__timeFilter(DATE)
  GROUP BY  day(date),month(date),year(date)
ORDER BY DATE

– Pour avoir le nombre d’activation de la fenetre par jour:

SELECT
UNIX_TIMESTAMP(date) as time_sec,
count(duration) as value
FROM TEAMS_AUDIT
WHERE
$__timeFilter(DATE)
GROUP BY day(date),month(date),year(date)
ORDER BY DATE

ENEDIS : Migration des données pour une utilisation dans Mariadb / Grafana (fait en Python)

Publié le 13/04/2020 par Frederic

Je viens de faire un nouveau programme en Python afin de mettre les données de ENEDIS sur MariaDB & Python.
Pour avoir les données de ENEDIS il faut aller sur https://mon-compte-particulier.enedis.fr/home-connectee/ et se faire un compte. Puis relier ce compte à la facture EDF … Je vais pas vous mentir c’est un peu de parcours du combattant. J’ai du faire appel à plusieurs fois au support afin que le lien puisse se faire. Misère.

Pour mieux comprendre les donnéesil faut lire : https://espace-client-particuliers.enedis.fr/documents/18080/5456906/pdf-producteurSuiviProduction/ebd9e049-5fd1-4769-9f87-b63e8c4b051c

EAS F1 à EAS F10 : le compteur Linky permet d’avoir jusqu’à 10 index de soutirage (à chaque index correspond un poste tarifaire de l’offre de votre Fournisseur)

EAS D1 à EAS D4 : 4 index de soutirage (calendrier Distributeur pour facturation de l’acheminement)

EAS T: Index Totalisateur du soutirage. Cet index sert à vérifier la cohérence entre la consommation affichée de la grille fournisseur et la consommation de la grille distributeur

J’ai fait cela sous Ubuntu mais Python fonctionne très bien sous Windows, MacOS, …

Il faut donc :

Python.
MariaDB (ou MySQL) (Il est très simple de modifier le code pour envoyer vers une autre destination)
Grafana.

Un petit rappel sur l’ajout de database et user sur MariaDB/MySQL :

$ sudo mysql -u root
[sudo] password for XXXX:
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 273026
Server version: 10.1.44-MariaDB-0ubuntu0.18.04.1 Ubuntu 18.04

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> create database ENEDIS;
Query OK, 1 row affected (0.00 sec)

MariaDB [(none)]> CREATE USER 'enedis'@'localhost' IDENTIFIED BY 'enedis';
Query OK, 0 rows affected (0.01 sec)

MariaDB [(none)]> GRANT ALL PRIVILEGES ON ENEDIS.* TO 'enedis'@'localhost';
Query OK, 0 rows affected (0.00 sec)

MariaDB [(none)]> FLUSH PRIVILEGES;
Query OK, 0 rows affected (0.00 sec)

MariaDB [(none)]> \quit
Bye

Ensuite il faut faire le lien avec Grafana :

Voici le programme en Python ( La version 1 , que je vais améliorer par la suite ). A noter que vous devez mettre le path complet de votre fichier à la place de Enedis_Conso_Jour_XXXXX-XXXX_YYYYYY.csv.

Les sources sont disponibles ici : https://github.com/farias06/Grafana/blob/master/ENEDIS_CSV_insert.py

#! /usr/bin/env python3
# -*-coding:Latin-1 -*

# @author <@cyber-neurones.org>

# Version 1

import csv
from datetime import datetime
import mysql.connector
import re
from mysql.connector import errorcode
from mysql.connector import (connection)
#import numpy as np

def days_between(d1, d2):
    d1 = datetime.strptime(d1, "%Y-%m-%d %H:%M:%S")
    d2 = datetime.strptime(d2, "%Y-%m-%d %H:%M:%S")
    return abs((d2 - d1).days)

def clean_tab(d):
     if d != "":
         return int(d);
     else:
         return 0

cnx = connection.MySQLConnection(user='enedis', password='enedis',
                                 host='127.0.0.1',
                                 database='ENEDIS')
cursor = cnx.cursor();
now = datetime.now().date();

#cursor.execute("DROP TABLE COMPTEUR;");
#cursor.execute("CREATE TABLE COMPTEUR (DATE datetime,TYPE_RELEVE varchar(50),EAS_F1 int, EAS_F2 int, EAS_F3 int , EAS_F4 int, EAS_F5 int, EAS_F6 int , EAS_F7 int, EAS_F8 int, EAS_F9 int, EAS_F10 int, EAS_D1 int, EAS_D2 int, EAS_D3 int,EAS_D4 int, EAS_T  int );");
cursor.execute("DELETE FROM COMPTEUR");
cnx.commit();

MyType_Previous = "None";
MyEAS_F1_Previous = 0;
MyEAS_F1 = 0
Diff_EAS_T_int = 0

with open('Enedis_Conso_Jour_XXXXX-XXXX_YYYYYY.csv', 'r') as csvfile:
    reader = csv.reader(csvfile, delimiter=';')
    for row in reader:
        Nb = len(row);
        #row.replace(np.nan, 0)
        #print ("Nb:"+str(Nb));
        if (Nb == 17):
            MyDate=row[0].replace("+02:00", "")
            MyDate=MyDate.replace("T", " ")
            MyDate=MyDate.replace("+01:00", "")
            MyType=row[1].replace("'", " ")
            if (MyType == "Arrêté quotidien"):
                MyEAS_F1=clean_tab(row[2])
                MyEAS_F2=clean_tab(row[3])
                MyEAS_F3=clean_tab(row[4])
                MyEAS_F4=clean_tab(row[5])
                MyEAS_F5=clean_tab(row[6])
                MyEAS_F6=clean_tab(row[7])
                MyEAS_F7=clean_tab(row[8])
                MyEAS_F8=clean_tab(row[9])
                MyEAS_F9=clean_tab(row[10])
                MyEAS_F10=clean_tab(row[11])
                MyEAS_D1=clean_tab(row[12])
                MyEAS_D2=clean_tab(row[13])
                MyEAS_D3=clean_tab(row[14])
                MyEAS_D4=clean_tab(row[15])
                MyEAS_T=clean_tab(row[16])

            if (MyType_Previous == MyType):
                #print(MyType_Previous+"/"+MyType);
                Day=days_between(MyDate,MyDate_Previous);
                #print("Diff in days"+str(Day));
            else:
                Day = 0

            if (Day == 1):
                Diff_EAS_F1 = str(MyEAS_F1-MyEAS_F1_Previous);
                Diff_EAS_F2 = str(MyEAS_F2-MyEAS_F2_Previous);
                Diff_EAS_F3 = str(MyEAS_F3-MyEAS_F3_Previous);
                Diff_EAS_F4 = str(MyEAS_F4-MyEAS_F4_Previous);
                Diff_EAS_F5 = str(MyEAS_F5-MyEAS_F5_Previous);
                Diff_EAS_F6 = str(MyEAS_F6-MyEAS_F6_Previous);
                Diff_EAS_F7 = str(MyEAS_F7-MyEAS_F7_Previous);
                Diff_EAS_F8 = str(MyEAS_F8-MyEAS_F8_Previous);
                Diff_EAS_F9 = str(MyEAS_F9-MyEAS_F9_Previous);
                Diff_EAS_F10 = str(MyEAS_F10-MyEAS_F10_Previous);
                Diff_EAS_D1 = str(MyEAS_D1-MyEAS_D1_Previous);
                Diff_EAS_D2 = str(MyEAS_D2-MyEAS_D2_Previous);
                Diff_EAS_D3 = str(MyEAS_D3-MyEAS_D3_Previous);
                Diff_EAS_D4 = str(MyEAS_D4-MyEAS_D4_Previous);
                Diff_EAS_T_int = (MyEAS_T-MyEAS_T_Previous)/Day;
                Diff_EAS_T = str(Diff_EAS_T_int);

                if ((MyType == "Arrêté quotidien") and (Diff_EAS_T_int > 0)):
                    try :
                        Requesq_SQL="INSERT INTO COMPTEUR (DATE,TYPE_RELEVE,EAS_F1, EAS_F2, EAS_F3 , EAS_F4, EAS_F5, EAS_F6 , EAS_F7 , EAS_F8 , EAS_F9 , EAS_F10 , EAS_D1 , EAS_D2 , EAS_D3 ,EAS_D4 , EAS_T) VALUES ('"+MyDate+"', '"+MyType+"', "+Diff_EAS_F1+","+Diff_EAS_F2+", "+Diff_EAS_F3+", "+Diff_EAS_F4+", "+Diff_EAS_F5+", "+Diff_EAS_F6+", "+Diff_EAS_F7+","+Diff_EAS_F8+", "+Diff_EAS_F9+", "+Diff_EAS_F10+","+Diff_EAS_D1+","+Diff_EAS_D2+","+Diff_EAS_D3+","+Diff_EAS_D4+","+Diff_EAS_T+");";
                        #print Requesq_SQL;
                        cursor.execute(Requesq_SQL);
                    except mysql.connector.Error as err:
                        print("Something went wrong: {}".format(err))
                        if err.errno == errorcode.ER_BAD_TABLE_ERROR:
                            print("Creating table COMPTEUR")
                        else:
                            None

            if (Day > 1):
                print ("Day > 1 :"+str(Day))
                Diff_EAS_F1 = str((MyEAS_F1-MyEAS_F1_Previous)/Day);
                Diff_EAS_F2 = str((MyEAS_F2-MyEAS_F2_Previous)/Day);
                Diff_EAS_F3 = str((MyEAS_F3-MyEAS_F3_Previous)/Day);
                Diff_EAS_F4 = str((MyEAS_F4-MyEAS_F4_Previous)/Day);
                Diff_EAS_F5 = str((MyEAS_F5-MyEAS_F5_Previous)/Day);
                Diff_EAS_F6 = str((MyEAS_F6-MyEAS_F6_Previous)/Day);
                Diff_EAS_F7 = str((MyEAS_F7-MyEAS_F7_Previous)/Day);
                Diff_EAS_F8 = str((MyEAS_F8-MyEAS_F8_Previous)/Day);
                Diff_EAS_F9 = str((MyEAS_F9-MyEAS_F9_Previous)/Day);
                Diff_EAS_F10 = str((MyEAS_F10-MyEAS_F10_Previous)/Day);
                Diff_EAS_D1 = str((MyEAS_D1-MyEAS_D1_Previous)/Day);
                Diff_EAS_D2 = str((MyEAS_D2-MyEAS_D2_Previous)/Day);
                Diff_EAS_D3 = str((MyEAS_D3-MyEAS_D3_Previous)/Day);
                Diff_EAS_D4 = str((MyEAS_D4-MyEAS_D4_Previous)/Day);
                Diff_EAS_T_int = (MyEAS_T-MyEAS_T_Previous)/Day;
                Diff_EAS_T = str(Diff_EAS_T_int);

                if ((MyType == "Arrêté quotidien") and (Diff_EAS_T_int > 0)):
                    try :
                        Requesq_SQL="INSERT INTO COMPTEUR (DATE,TYPE_RELEVE,EAS_F1, EAS_F2, EAS_F3 , EAS_F4, EAS_F5, EAS_F6 , EAS_F7 , EAS_F8 , EAS_F9 , EAS_F10 , EAS_D1 , EAS_D2 , EAS_D3 ,EAS_D4 , EAS_T) VALUES ('"+MyDate+"', '"+MyType+"', "+Diff_EAS_F1+","+Diff_EAS_F2+", "+Diff_EAS_F3+", "+Diff_EAS_F4+", "+Diff_EAS_F5+", "+Diff_EAS_F6+", "+Diff_EAS_F7+","+Diff_EAS_F8+", "+Diff_EAS_F9+", "+Diff_EAS_F10+","+Diff_EAS_D1+","+Diff_EAS_D2+","+Diff_EAS_D3+","+Diff_EAS_D4+","+Diff_EAS_T+");";
                        print Requesq_SQL;
                        cursor.execute(Requesq_SQL);
                    except mysql.connector.Error as err:
                        print("Something went wrong: {}".format(err))
                        if err.errno == errorcode.ER_BAD_TABLE_ERROR:
                            print("Creating table COMPTEUR")
                        else:
                            None

            # Save Previous
            if ((MyType == "Arrêté quotidien") and (Diff_EAS_T_int >= 0)):
                MyDate_Previous=MyDate;
                MyType_Previous=MyType;
                MyEAS_F1_Previous=MyEAS_F1;
                MyEAS_F2_Previous=MyEAS_F2;
                MyEAS_F3_Previous=MyEAS_F3;
                MyEAS_F4_Previous=MyEAS_F4;
                MyEAS_F5_Previous=MyEAS_F5;
                MyEAS_F6_Previous=MyEAS_F6;
                MyEAS_F7_Previous=MyEAS_F7;
                MyEAS_F8_Previous=MyEAS_F8;
                MyEAS_F9_Previous=MyEAS_F9;
                MyEAS_F10_Previous=MyEAS_F10;
                MyEAS_D1_Previous=MyEAS_D1;
                MyEAS_D2_Previous=MyEAS_D2;
                MyEAS_D3_Previous=MyEAS_D3;
                MyEAS_D4_Previous=MyEAS_D4;
                MyEAS_T_Previous=MyEAS_T;


cnx.commit();
cursor.close();
cnx.close();

# END

Ensuite on passe à la visualisation graphique :

Voir la consommation totale :

SELECT
  UNIX_TIMESTAMP(date) as time_sec,
  EAS_T as value,
  "TOTAL" as metric
FROM COMPTEUR
WHERE $__timeFilter(date)
ORDER BY date ASC

Ensuite les autres graphiques sont fonctions du forfait … pour ma part j’ai EAS D1 (Heures pleines):

SELECT
  UNIX_TIMESTAMP(date) as time_sec,
  EAS_D1 as value,
  "Heures pleines" as metric
FROM COMPTEUR
WHERE $__timeFilter(date)
ORDER BY date ASC

Et aussi EAS D2 (Nuit) :

SELECT
UNIX_TIMESTAMP(date) as time_sec,
EAS_D2 as value,
"Heures creuses" as metric
FROM COMPTEUR
WHERE $__timeFilter(date)
ORDER BY date ASC

Je vais améliorer les versions patiences …

Slack : Migration des données de connexion vers MariaDB pour une utilisation dans Grafana

Publié le 08/04/2020 par Frederic

Répondre

Pour utiliser le script il faut:

MariaDB
Python
Grafana.

Slack permet le téléchargement d’un fichier CSV ( access_logs.csv ), dont les données sont les suivantes :

Date Accessed,
User Agent – Simple,
User Agent – Full,
IP Address,
Number of Logins,
Last Date Accessed

Petit rappel sur l’ajout d’une database et d’un utilisateur :

$ sudo mysql -u root

MariaDB [(none)]> create database SLACK;

MariaDB [(none)]> CREATE USER 'slack'@'localhost' IDENTIFIED BY 'slack';

MariaDB [(none)]> GRANT ALL PRIVILEGES ON SLACK.* TO 'slack'@'localhost';

MariaDB [(none)]> FLUSH PRIVILEGES;

MariaDB [(none)]> \quit
Bye

Petit rappel aussi en python pour télécharger une classe non disponible :

$ sudo pip install python-dateutil

Le source du programme : ( Les sources sont disponibles ici : https://github.com/farias06/Grafana/blob/master/Slack_CSV_insert.py )

#! /usr/bin/env python3
# ~*~ utf-8 ~*~

import csv
from datetime import datetime
from dateutil.parser import parse
import mysql.connector
from mysql.connector import errorcode
from mysql.connector import (connection)


cnx = connection.MySQLConnection(user='slack', password='slack',
                                 host='127.0.0.1',
                                 database='SLACK')
cursor = cnx.cursor();
now = datetime.now().date();

#cursor.execute("DROP TABLE SLACK;");
#cursor.execute("CREATE TABLE SLACK (DATE datetime, DATE_LAST datetime, USER_AGENT varchar(50),USER_AGENT_FULL varchar(256), IP varchar(26), NUMBER int);");
cursor.execute("DELETE FROM SLACK");
cnx.commit();

with open('access_logs.csv', 'r') as csvfile:
    reader = csv.reader(csvfile, quotechar='"')
    for row in reader:
        MyDate=row[0];
        MyDate = MyDate.rsplit('(',1)[0];
        if (MyDate == "Date Accessed"):
           print("No");
        else:
           Dt = parse(MyDate)
           MyUser=row[1];
           MyUser=MyUser.replace("'", " ")
           MyUserFull=row[2];
           MyUserFull=MyUserFull.replace("'", " ")
           MyIP=row[3];
           MyNumber=row[4];
           MyDateLast=row[5];
           MyDateLast = MyDateLast.rsplit('(',1)[0];
           DtLast = parse(MyDateLast)
           try :
              SQLREQUEST = "INSERT INTO SLACK (DATE, USER_AGENT, USER_AGENT_FULL, IP, DATE_LAST, NUMBER) VALUES ('"+str(Dt.date())+" "+str(Dt.time())+"', '"+MyUser+"', '"+MyUserFull+"','"+MyIP+"', '"+str(DtLast.date())+" "+str(DtLast.time())+"', "+MyNumber+" );";
              cursor.execute(SQLREQUEST);
           except mysql.connector.Error as err:
              print("Something went wrong: {}".format(err))
              if err.errno == errorcode.ER_BAD_TABLE_ERROR:
                 print("Creating table SLACK")
              else:
                 None

cnx.commit();
cursor.close();
cnx.close();

# END

Pour lancer le programme :

$ python Slack_CSV_insert.py

Ensuite pour voir les données il y a plusieurs requetes possibles pour le metric :

Par IP :

SELECT
  UNIX_TIMESTAMP(date) as time_sec,
  SUM(number) as value,
  ip as metric
FROM SLACK
WHERE $__timeFilter(date)
GROUP BY day(date),month(date),year(date)
ORDER BY date ASC

Par User Agent :

SELECT
  UNIX_TIMESTAMP(date) as time_sec,
  SUM(number) as value,
  user_agent as metric
FROM SLACK
WHERE $__timeFilter(date)
GROUP BY day(date),month(date),year(date)
ORDER BY date ASC

Par User Agent Full :

SELECT
  UNIX_TIMESTAMP(date) as time_sec,
  SUM(number) as value,
  user_agent_full as metric
FROM SLACK
WHERE $__timeFilter(date)
GROUP BY day(date),month(date),year(date)
ORDER BY date ASC

J’ai noté un bug, j’utilise la version Desktop sous Linux et je n’ai pas de « Application de Bureau Linux » .

CyberNeurones !

Sports, Informations locales, Open Source, Consom'acteur, Trekking.

Archives par mot-clé : Grafana

Analyse via Grafana du compte Twitter @CYBERNEURONES

J’aime ça :

Microsoft Teams sous Linux : Push des logs vers Grafana

J’aime ça :

ENEDIS : Migration des données pour une utilisation dans Mariadb / Grafana (fait en Python)

J’aime ça :

Slack : Migration des données de connexion vers MariaDB pour une utilisation dans Grafana

J’aime ça :
